Small Workshop Layout Ideas That Maximize Space
April 2026 · 7 min read
The difference between a frustrating shop and a productive one isn't usually size — it's layout. A well-designed 200 sq ft garage shop outperforms a poorly planned 500 sq ft space every time. Here are the 4 proven layouts that professional small-shop builders use.
Get complete layout plans — sized for your exact space.
Each layout comes with exact dimensions, zone labels, tool placement, and a materials list.
Get the Small Shop Plans →4 Layouts That Work

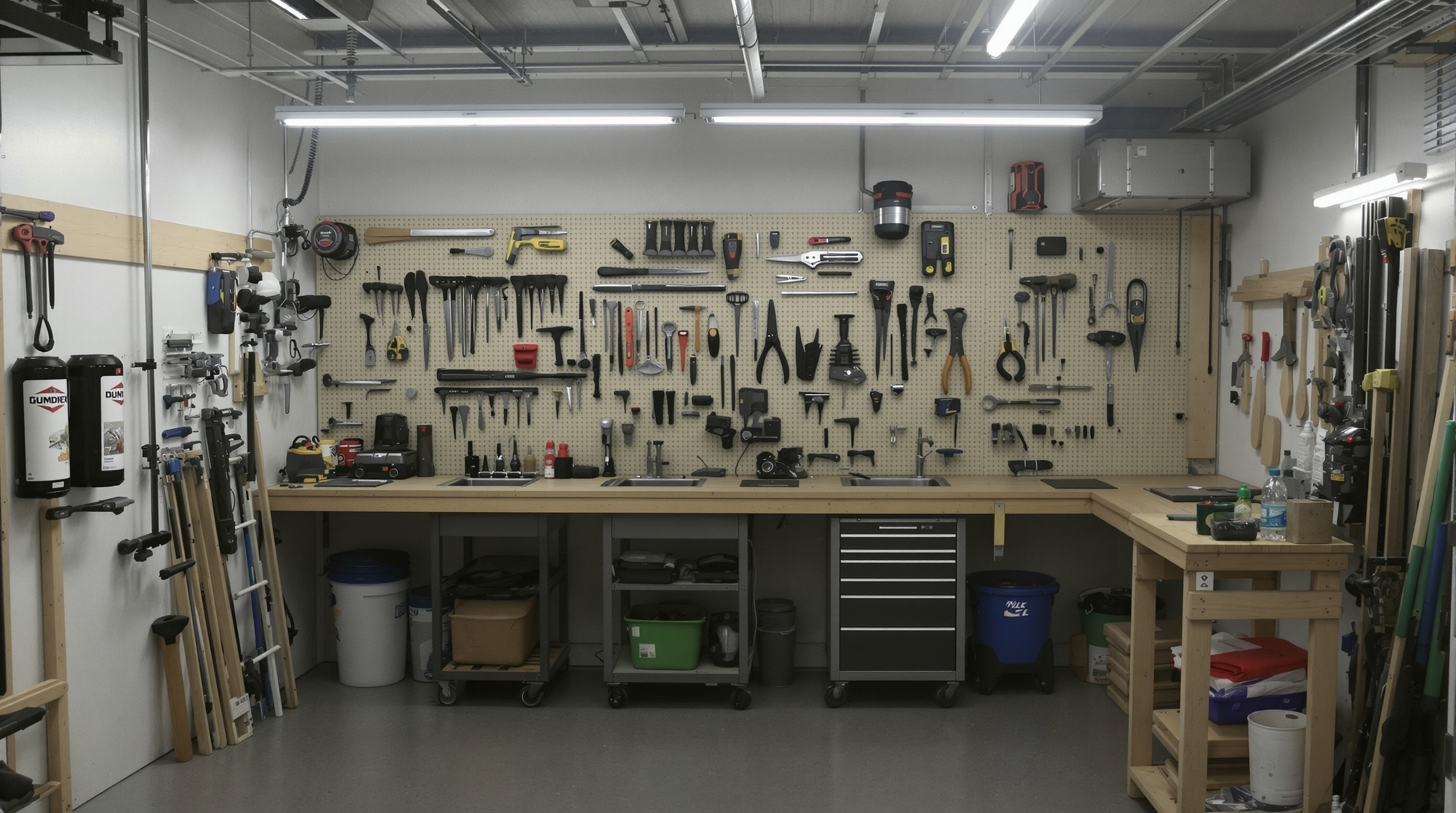

The Single-Wall Layout
Under 150 sq ftAll tools and storage on one wall, open floor in the center. Best for narrow spaces like sheds or one-wall garage sections.
The U-Shape Layout
200–300 sq ftWorkbench wraps three walls. Maximum surface area in a compact space. Workflow moves naturally from station to station.
The L-Shape Layout
150–250 sq ftTwo walls used for workbench and storage, with the third wall reserved for large tool or vehicle access. Versatile and popular.
The Island Layout
300+ sq ftA central island workbench surrounded by wall storage. Pro-grade design that enables work-around access and team projects.
Which layout fits your space?
Professional plans for every layout type — with step-by-step build guides and full materials lists.
Get the Small Shop Plans →Universal Rules for Any Layout
- Keep workflow linear — material flows one direction through the shop
- Never block the main door with fixed equipment
- Plan lighting for each zone independently — one overhead light isn't enough
- Leave at least 36 inches of clear walking path along your primary work zone
